The Savage Homestead

LA 74544

Introduction and Background



aphoto w structures2

Figure 1. aphoto w structures2

 Description
valley v SE

Figure 2. valley v SE

 Description
valley vN

Figure 3. valley vN

 Description



Methods



aaron core2

Figure 4. aaron core2

 Descritpion
adampaulsaw

Figure 5. adampaulsaw

 Descritpion





Features



Feature 1: The South Cabin



 Description

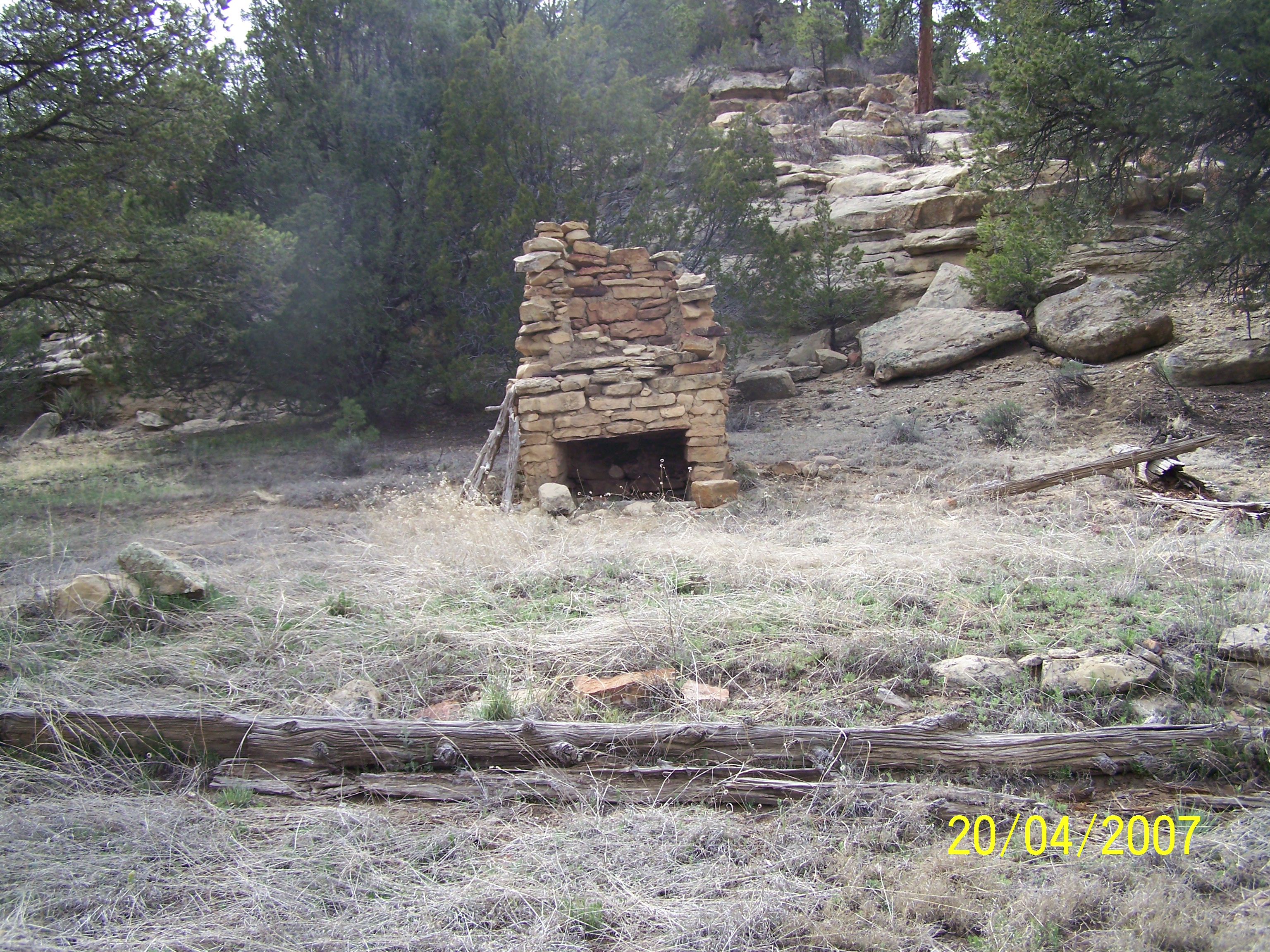

Feature 4: The Logless Cabin

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  4 4-1 PP loose log south
  4 4-2   loose log west
  4 4-3 PP loose log east 1762p 1933vv
  4 4-4 PP loose log south
  4 4-5 PP loose log south
  4 4-6 PP loose log west

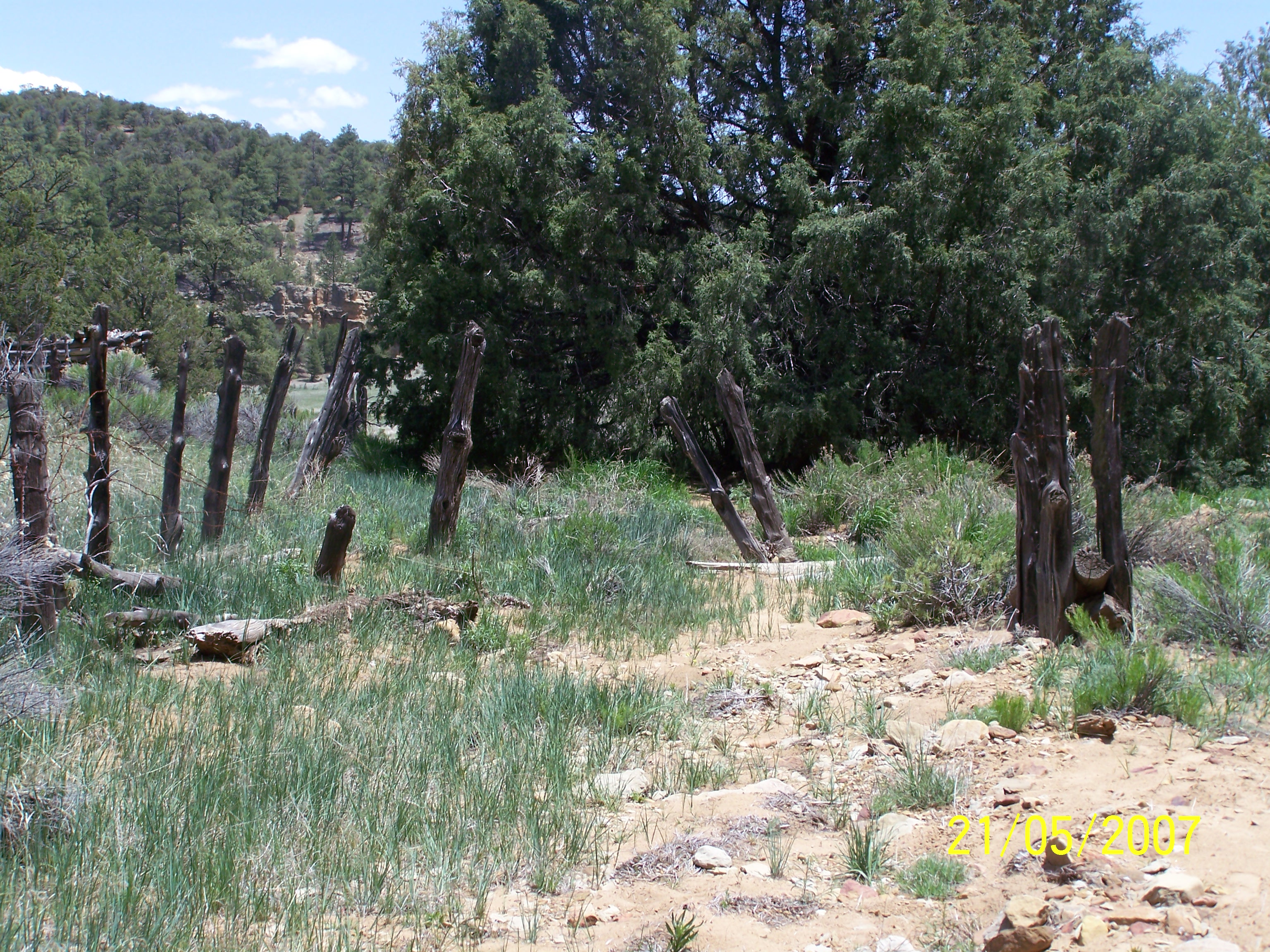

Feature 6: The Corral

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  6 6-1 PNN upright post   1887p 1933vv
  6 6-2 JUN upright post
  6 6-3 JUN upright post
  6 6-4 JUN upright post
  6 6-5 JUN upright post
  6 6-6 PNN upright post   1843p 1932vv
  6 6-7 PNN horizontal wall element

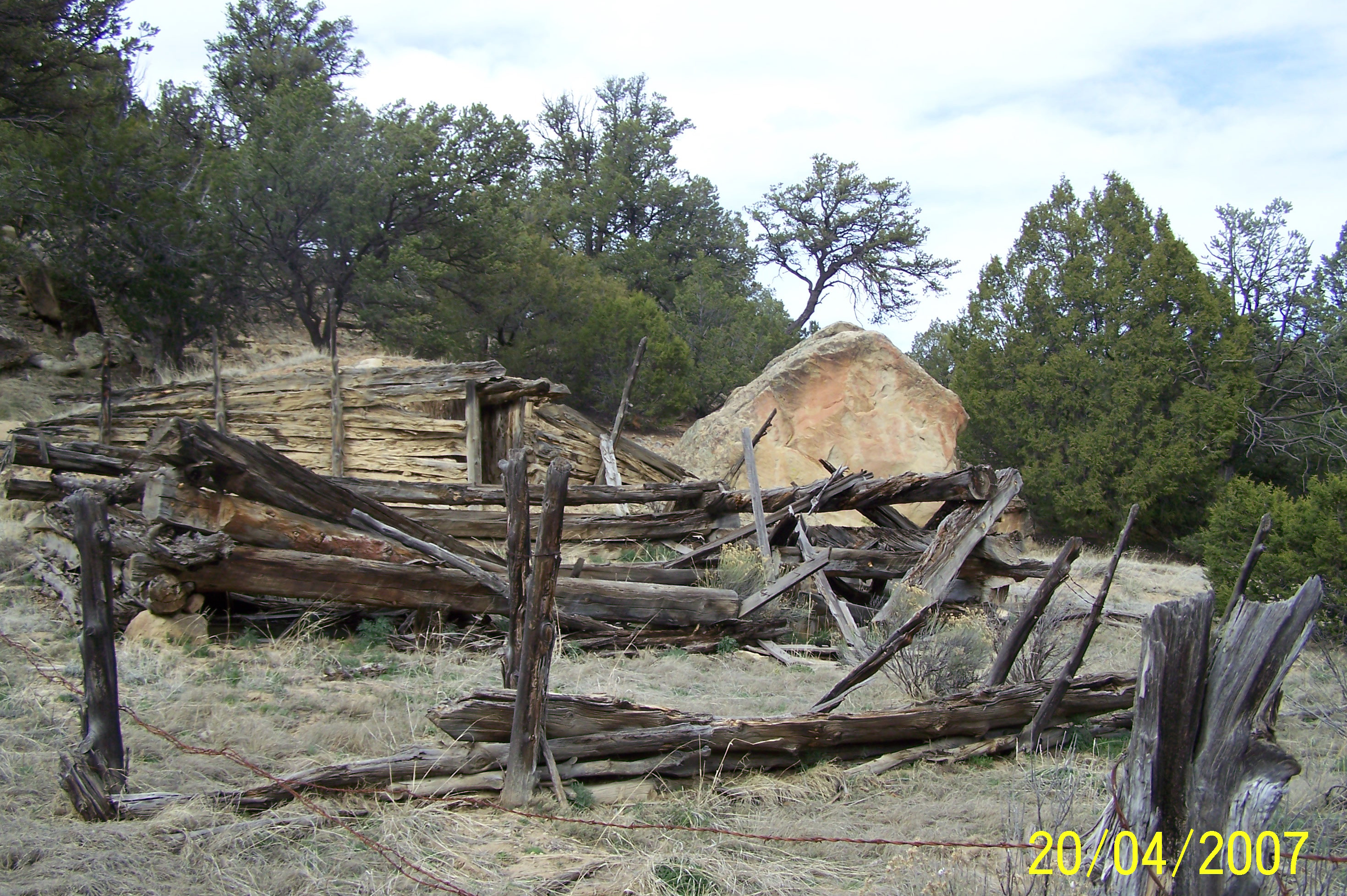

Feature 7: The Storage Cabin

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  7 7-1   horizontal wall element south
  7 7-2   horizontal wall element south
  7 7-3   horizontal wall element south
  7 7-4   wall support south
  7 7-5   wall support south
  7 7-6   horizontal wall element east
  7 7-7   horizontal wall element east
  7 7-8   horizontal wall element north
  7 7-9   horizontal wall element north
  7 7-10   roof primary

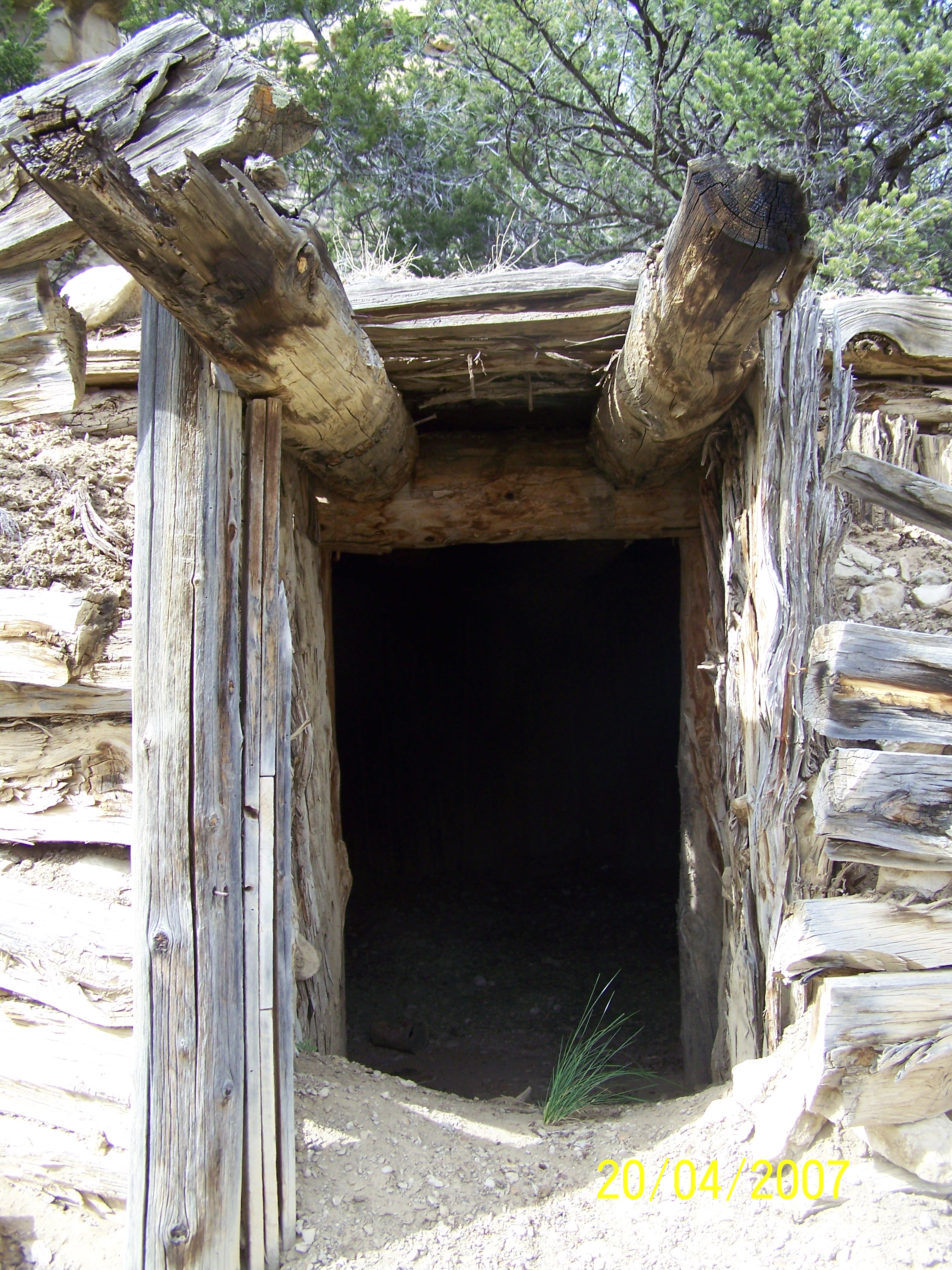

Feature 8: The Dugout

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  8 8-1   roof support SE Corner
  8 8-2 PP roof support, door jamb South 1877 1937v comp
  8 8-3 PP roof support, door jamb South 1852p 1937B comp
  8 8-4   roof support SW Corner
  8 8-5   roof support NW Corner
  8 8-6   roof support Middle North
  8 8-7   roof support NE Corner
  8 8-8   roof auxillary
  8 8-9   roof auxillary
  8 8-10   roof support
  8 8-11   roof support
  8 8-12   roof support
  8 8-13   roof support
  8 8-14   roof tertiary
  8 8-15 JUN vertical wall element
  8 8-16   Door jamb South
  8 8-17   upright post
  8 8-18   horizontal wall element retaining wall
  8 8-19   upright post retaining wall

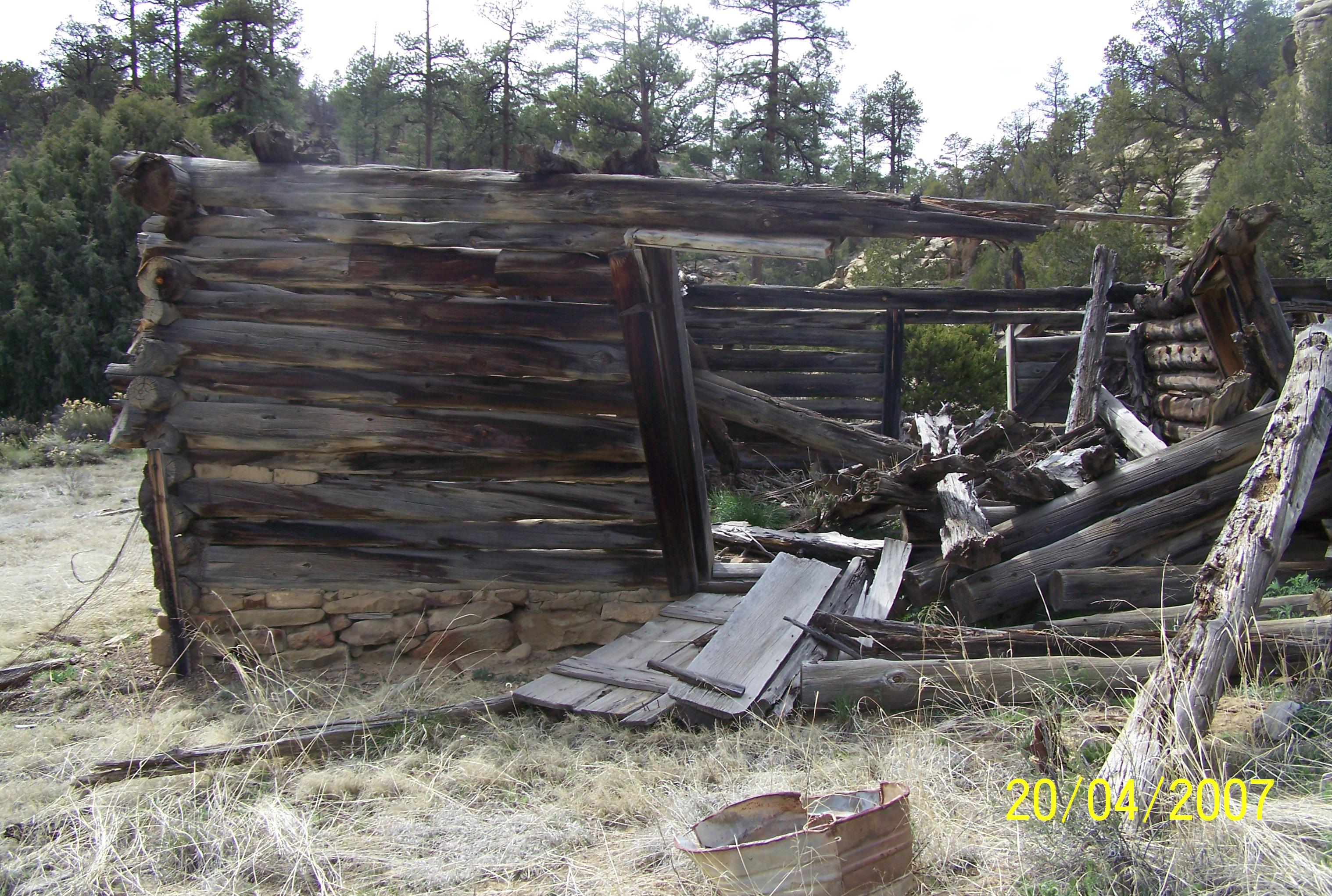

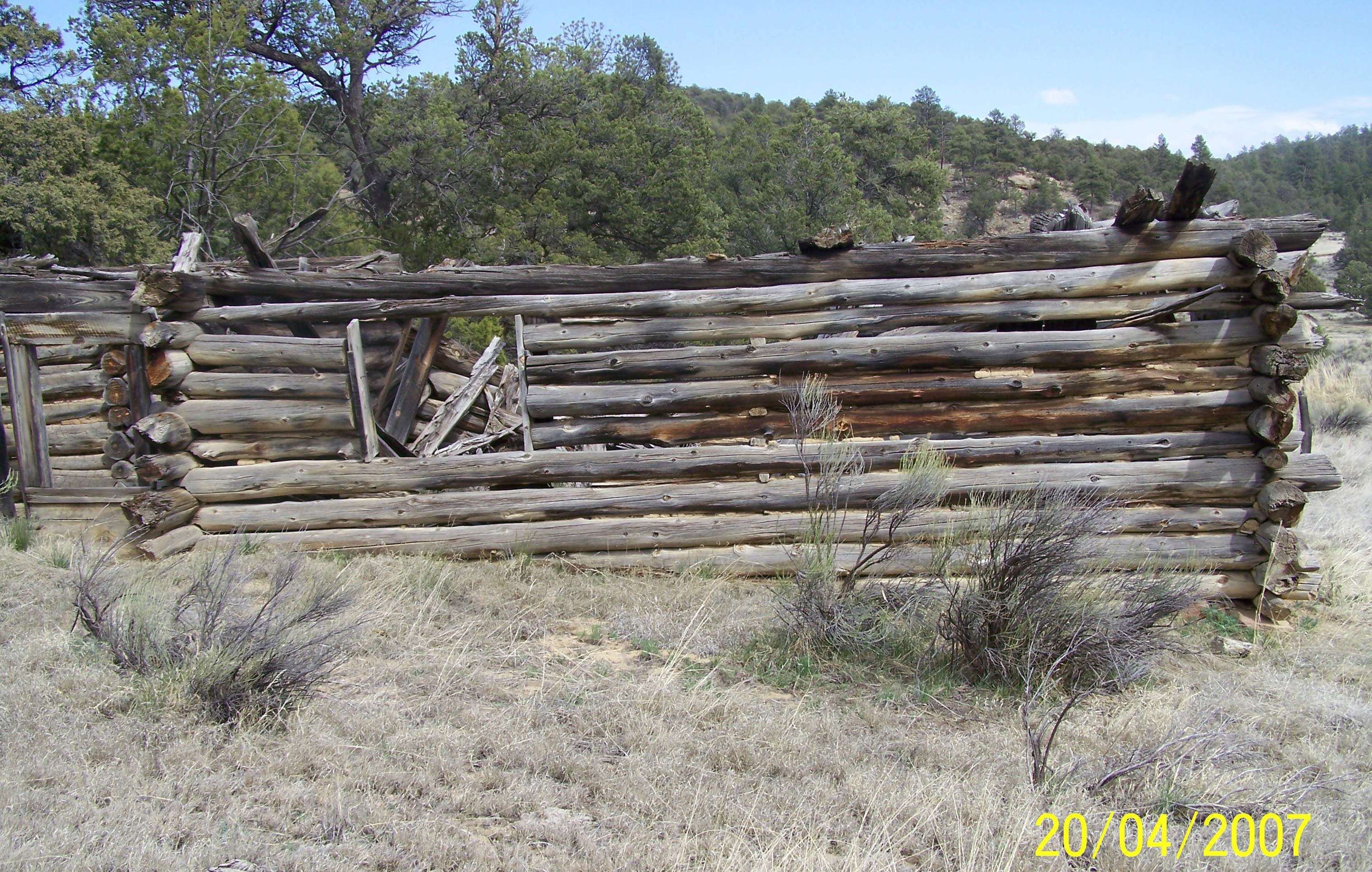

Feature 9: The Main Cabin



Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  9 9-1 PP RM 1 horizontal wall element S #3 1889 1937vv
  9 9-2 PP RM 1 horizontal wall element S #5 1916 1937v comp
  9 9-3 PP RM 1 horizontal wall element S #7 1869 1937vv
  9 9-4 PP RM 1 horizontal wall element S #11 (top) 1876 1937vv
  9 9-5 PP RM 1 horizontal wall element W #4   1932vv
  9 9-6 PP RM 1 horizontal wall element W #11 1849 1937vv
  9 9-7 PP RM 1 horizontal wall element W#13 1855 1937vv
  9 9-8 PP RM 1 horizontal wall element W #6 1906 1937v comp
  9 9-9 PP RM 1 horizontal wall element N # 8 (top)
  9 9-10 PP RM 1gate door jamb   1870p 1937vv
  9 9-11 PP RM 1 horizontal wall element W #13 (opp#7)
  9 9-12 PP RM 1 horizontal wall element N #3(e side of door) 1816p 1937vv
  9 9-13 PP RM 1 horizontal wall element E #7 1858 1936vv
  9 9-14 PP RM 1 horizontal wall element E #8 1882 1937vv
  9 9-15 PP RM 1roof primary   1804 1931+vv
  9 9-16 PP RM 2 horizontal wall element N #4 1817 1933vv
  9 9-17 PP RM 2 horizontal wall element N #6 1884 1936vv
  9 9-18 PP RM 2 horizontal wall element N #9 1895 1936vv
  9 9-19 PP RM 2 horizontal wall element N #10 1872p 1936vv
  9 9-20 PP RM 2 horizontal wall element SE #4 1828 1933vv
  9 9-21 PP RM 2 horizontal wall element SE #6 1838 1931vv
  9 9-22 PP RM 2 horizontal wall element SE #8 1837 1936vv
  9 9-23 PP RM 2 horizontal wall element SE #10 1840 1936vv
  9 9-24 PP RM 2 horizontal wall element SW #6 1833 1936vv
  9 9-25 PP RM 2 horizontal wall element SW #7 1833 1936vv
  9 9-26 PP RM 2 horizontal wall element SW #8 1834 1936vv
  9 9-27 PP RM 2 horizontal wall element E#6 1865p 1936B inc
  9 9-28 PP RM 2 horizontal wall element E#9 1775 1935vv
  9 9-29 PP RM 2 horizontal wall element E #10 1853 1936vv
  9 9-30 PP RM 2 horizontal wall element E #11
  9 9-31 PP RM 2 horizontal wall element W #3 1878 1936vv
  9 9-32 PP RM 2 horizontal wall element W #5 1881p 1936vv
  9 9-33 PP RM 2 horizontal wall element W #8
  9 9-34 PP RM 2 horizontal wall element W #10
  9 9-35 PP RM 2 roof primary

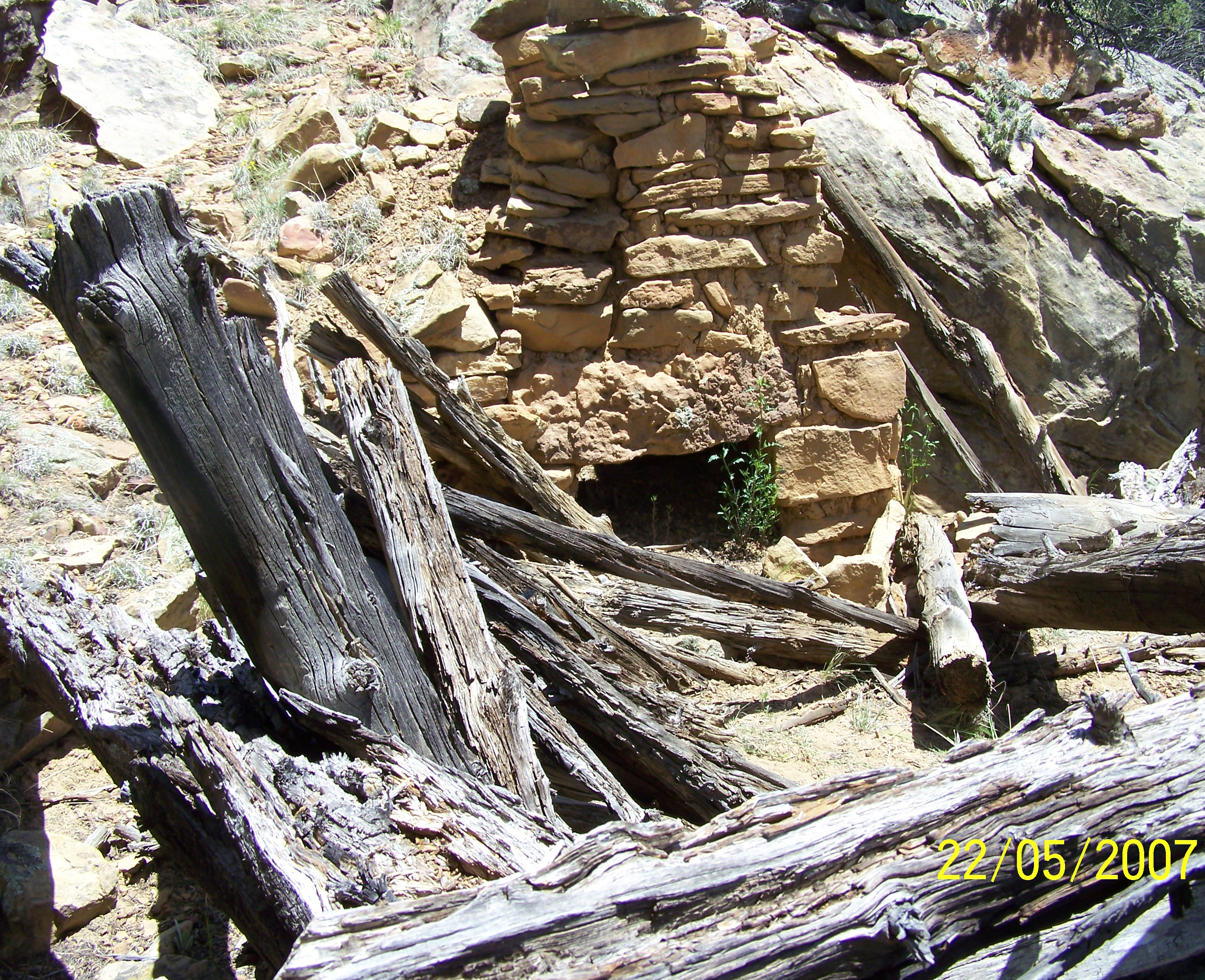

Feature 12: The Little Cabin





Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  12 12-1   horizontal wall element W #3
  12 12-2   horizontal wall element S #1
  12 12-3   horizontal wall element S #2
  12 12-4   horizontal wall element S #3
  12 12-5   horizontal wall element S #6
  12 12-6   horizontal wall element E #1
  12 12-7   horizontal wall element E #4
  12 12-8   horizontal wall element E #6
  12 12-9   horizontal wall element E #8
  12 12-10   roof secondary
  12 12-11   upright post (door jamb?) loose
  12 12-12   roof primary (?)
  12 12-13   roof secondary W #3
  12 12-14   roof secondary W #4
  12 12-15   roof secondary (?) loose

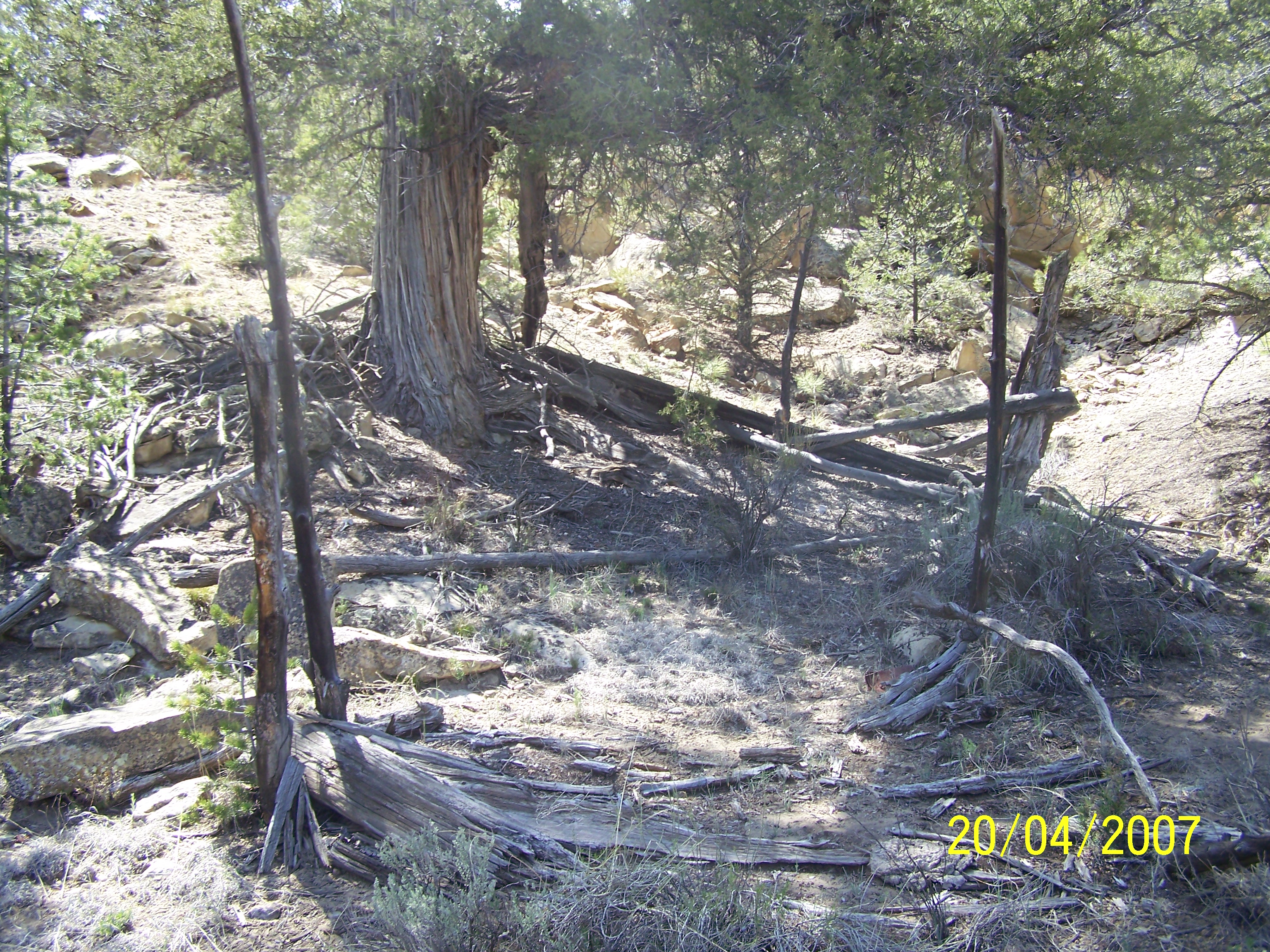

Feature 14: The Brush Structure

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  14 14-1   upright post
  14 14-2   upright post
  14 14-3   upright post
  14 14-4   upright post
  14 14-5   upright post

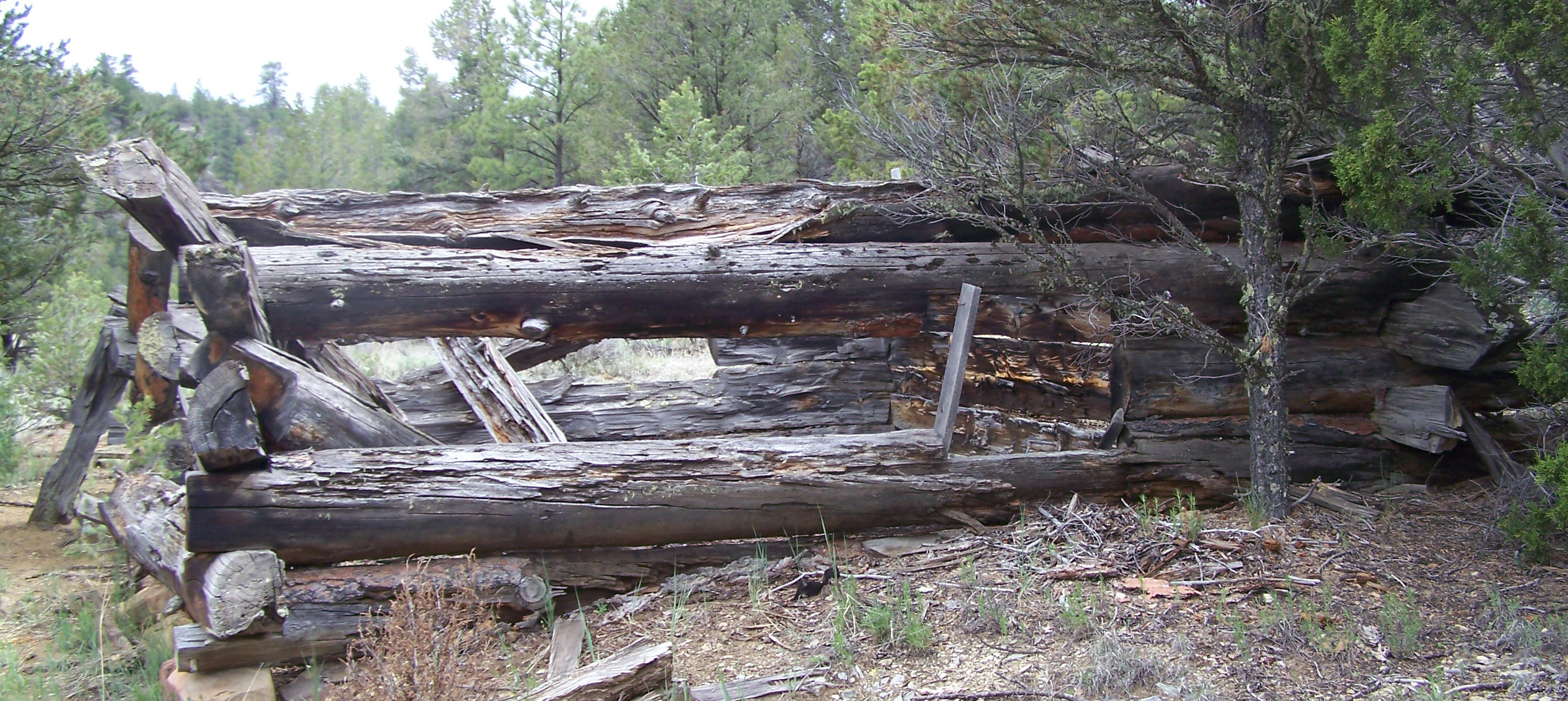

Feature 15: The Hidden Cabin

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  15 15-2   horizontal wall element S #2
  15 15-3   horizontal wall element S #-3
  15 15-4   horizontal wall element S #4
  15 15-5   horizontal wall element S #3 (dup?)
  15 15-6   horizontal wall element W #3
  15 15-7   horizontal wall element W #4
  15 15-8   horizontal wall element W #5
  15 15-9   horizontal wall element S #6
  15 15-10   horizontal wall element E #1
  15 15-11   horizontal wall element E #2
  15 15-12   horizontal wall element E #3
  15 15-13   horizontal wall element E #4
  15 15-14   horizontal wall element E #5
  15 15-15   horizontal wall element E #7
  15 15-16   horizontal wall element N #1
  15 15-17   horizontal wall element N #2
  15 15-18   horizontal wall element N #3
  15 15-19   window jamb N #4
  15 15-20   roof primary (?)

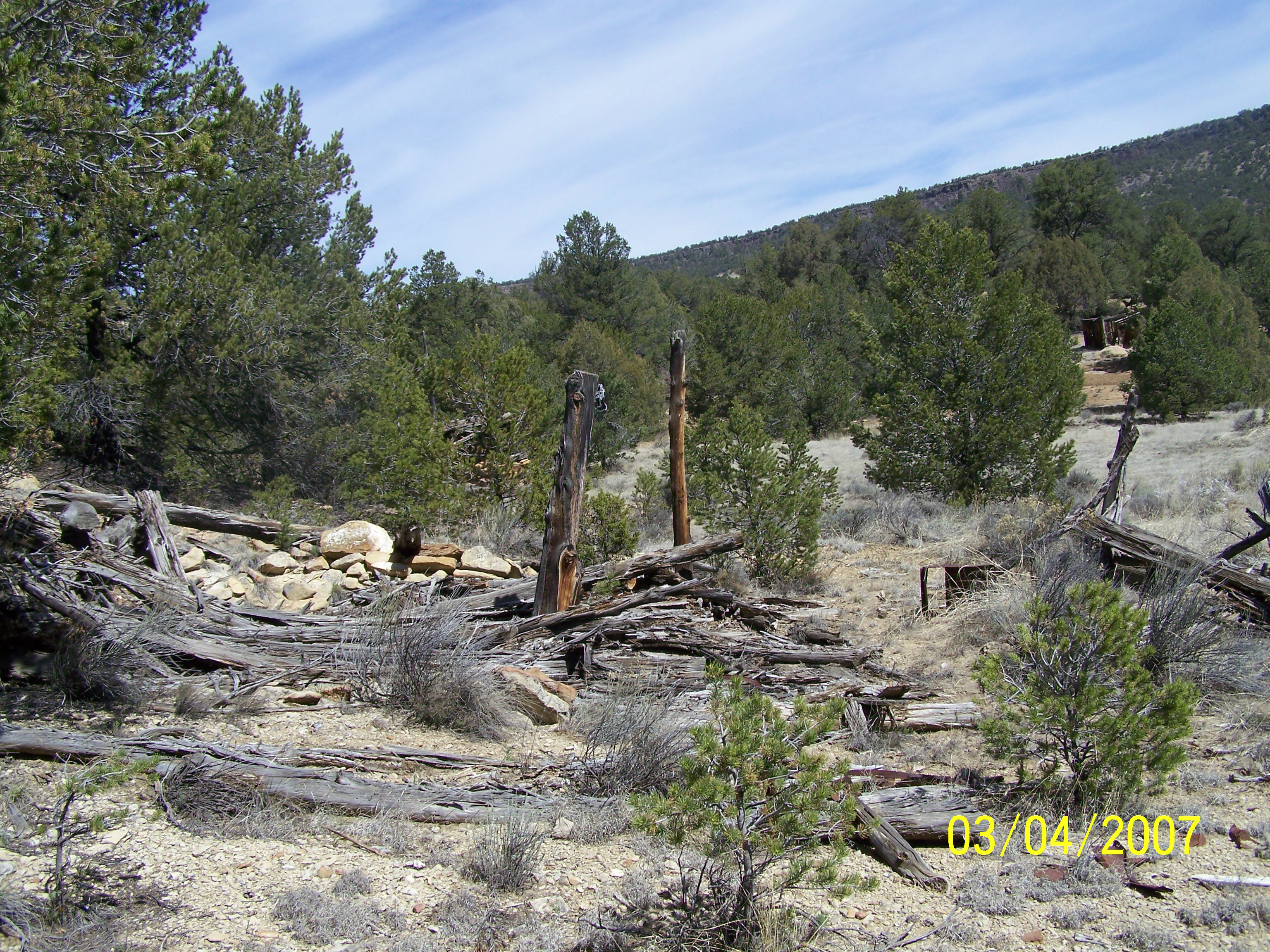

Feature 16: The Chicken Coop

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  16 16-1   horizontal wall element E #1
  16 16-2   horizontal wall element W #1
  16 16-3   loose log
  16 16-4   roof secondary
  16 16-5   roof secondary
  16 16-6   horizontal wall element W #2
  16 16-7   upright post
  16 16-9   upright post east porch
  16 16-10   horizontal wall element east porch
  16 16-11   upright post east porch
  16 16-12   horizontal wall element east porch
  16 16-13   loose log lost?
  16 16-14   horizontal wall element W #3
  16 16-15   roof secondary

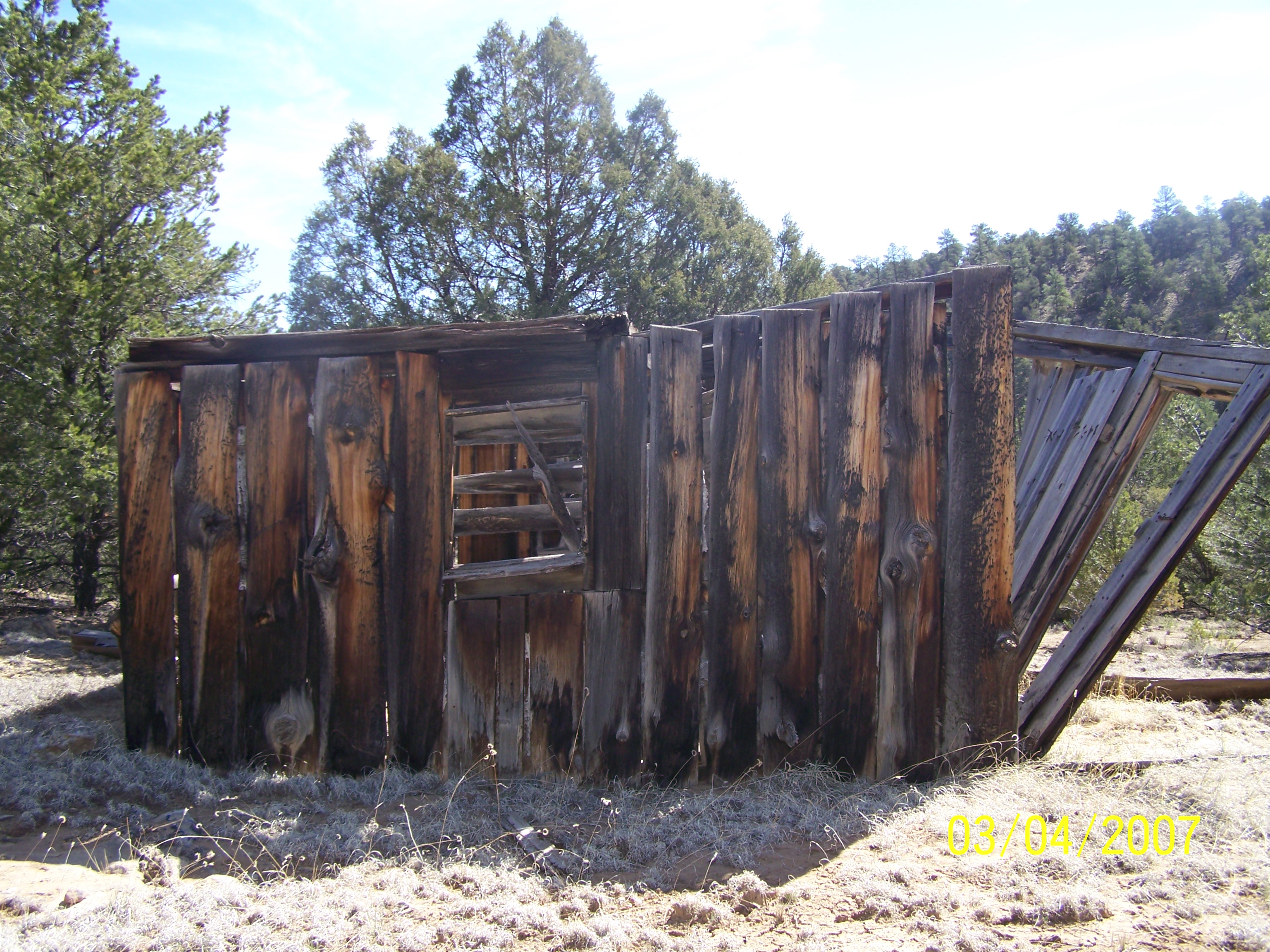

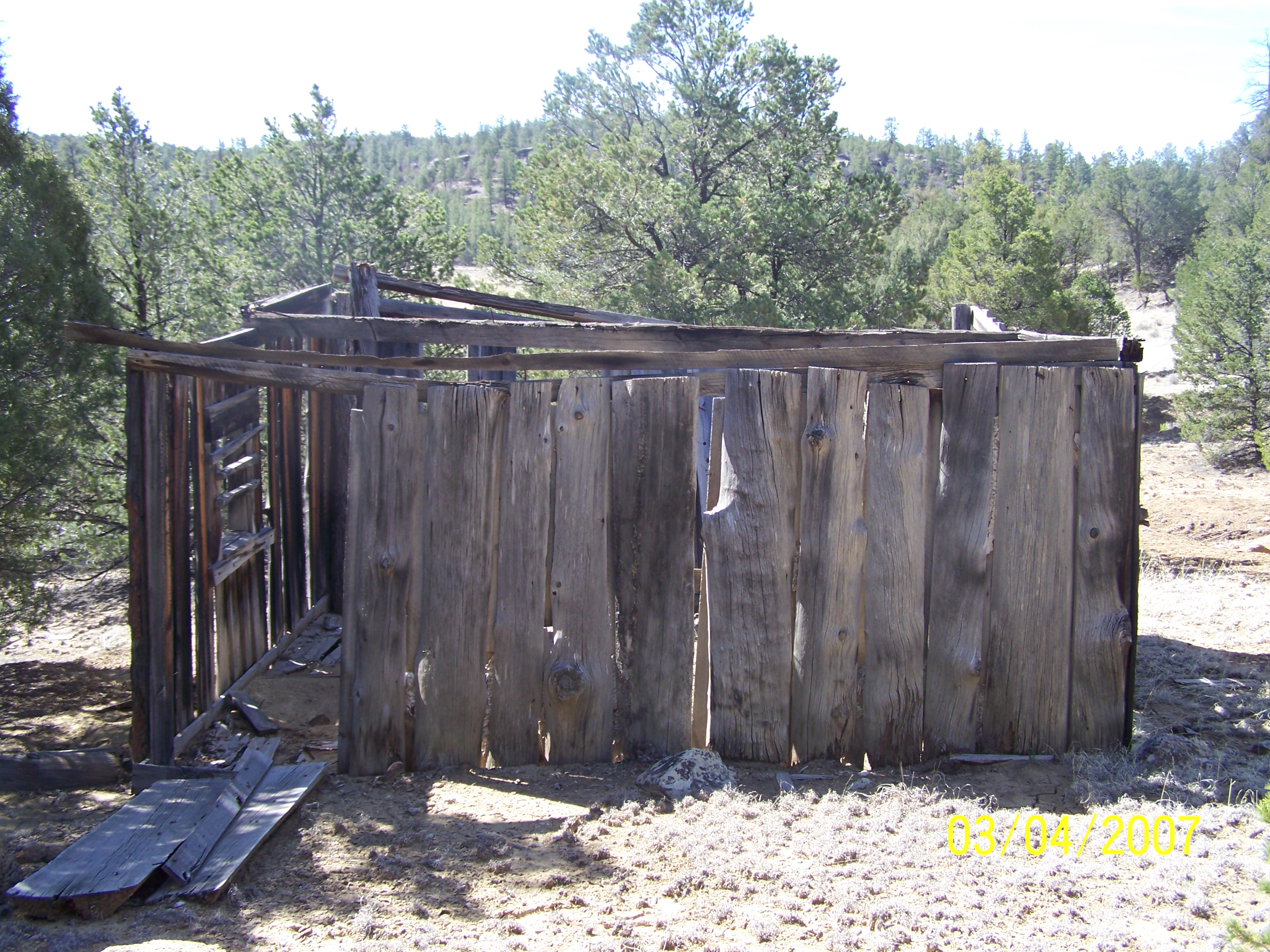

Feature 17: The 1/4 Round Cabin

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  17 17-1 PP vertical wall element W #2
  17 17-2 PP vertical wall element W #4
  17 17-3 PP vertical wall element W #14
  17 17-4 PP vertical wall element W #8
  17 17-5 PP vertical wall element W #12
  17 17-6 PP vertical wall element N #1
  17 17-7 PP vertical wall element N #7
  17 17-8 PP vertical wall element N #*
  17 17-9 PP vertical wall element N #11
  17 17-10 PP vertical wall element E #1
  17 17-11 PP vertical wall element E #2
  17 17-12 PP vertical wall element E #7
  17 17-13 PP vertical wall element E #9
  17 17-14 PP vertical wall element S #3
  17 17-15 PP vertical wall element S #9
  17 17-16 JUN corner suuport post sw corner
  17 17-17 JUN corner suuport post se corner

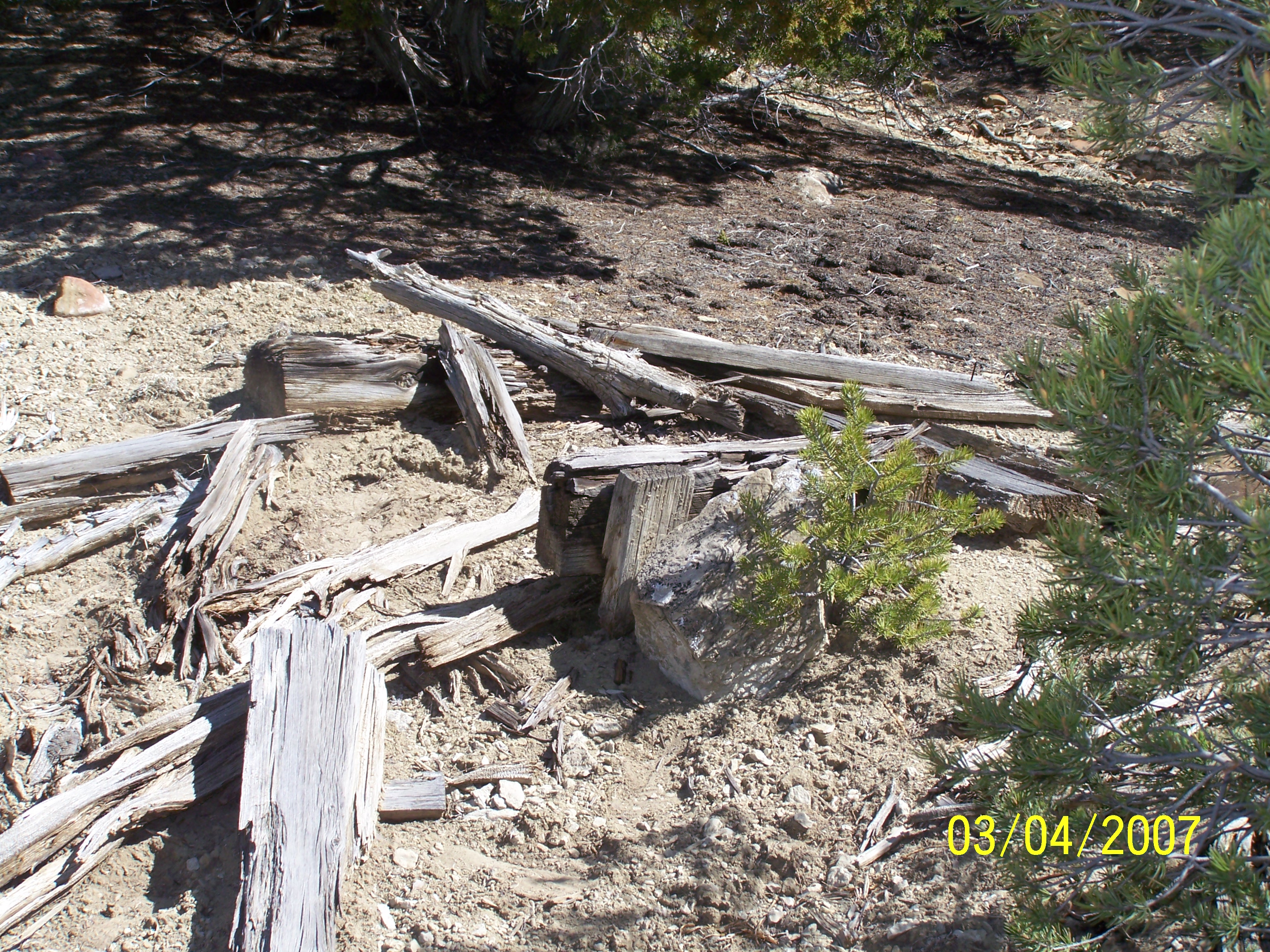

Feature 18: The Outhouse

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  18 18-1   loose log
  18 18-2   loose log
  18 18-3   loose log

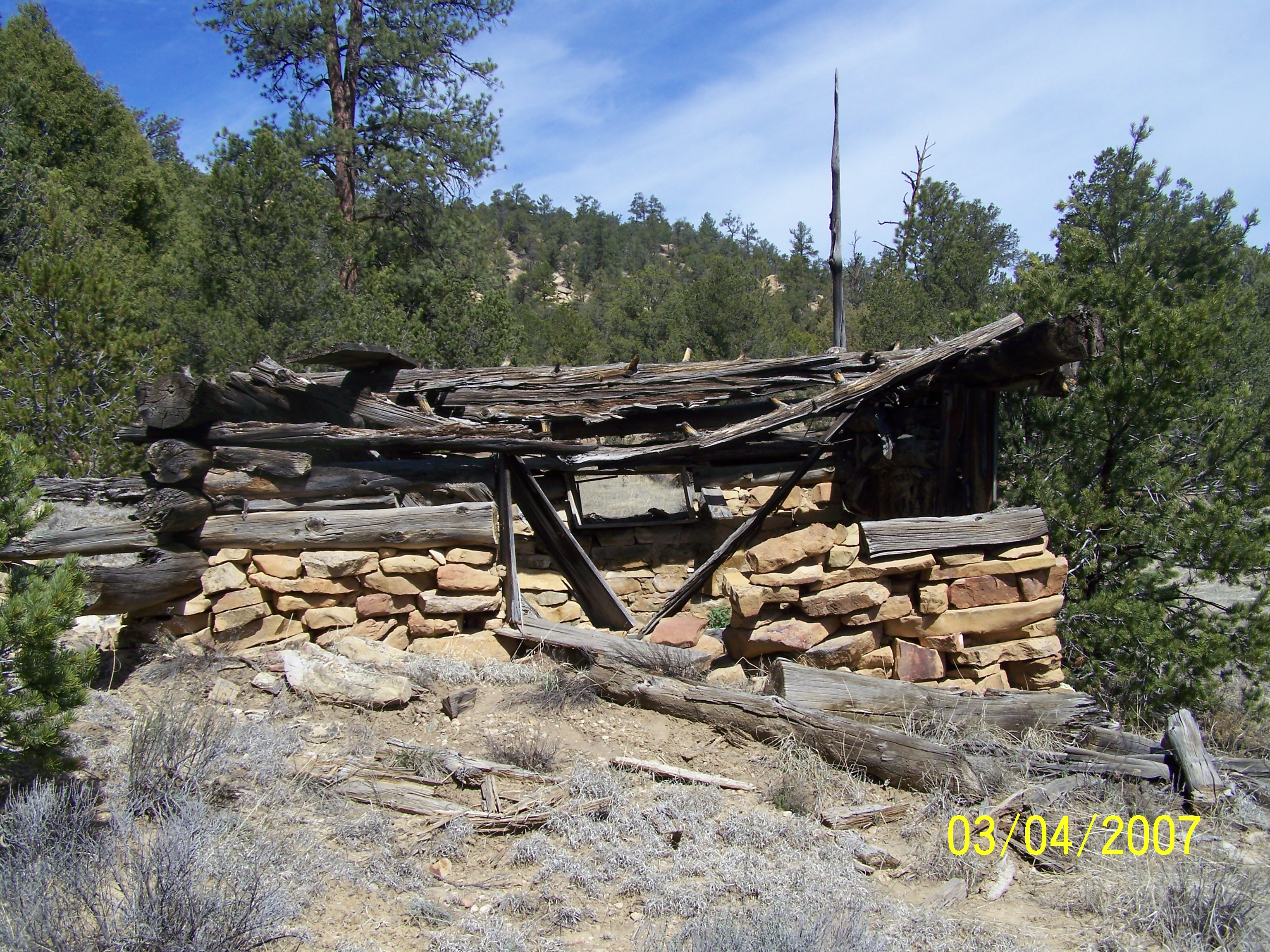

Feature 19: The Public Cabin

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  19 19-1   horizontal wall element East
  19 19-2   horizontal wall element East
  19 19-3   horizontal wall element East
  19 19-4   horizontal wall element East
  19 19-5   horizontal wall element North
  19 19-6   horizontal wall element North
  19 19-7   horizontal wall element North
  19 19-8   horizontal wall element North
  19 19-9   horizontal wall element West
  19 19-10   horizontal wall element West
  19 19-11   horizontal wall element West
  19 19-12   horizontal wall element West
  19 19-13   horizontal wall element South
  19 19-14   horizontal wall element South
  19 19-15   horizontal wall element South
  19 19-16   chinking South

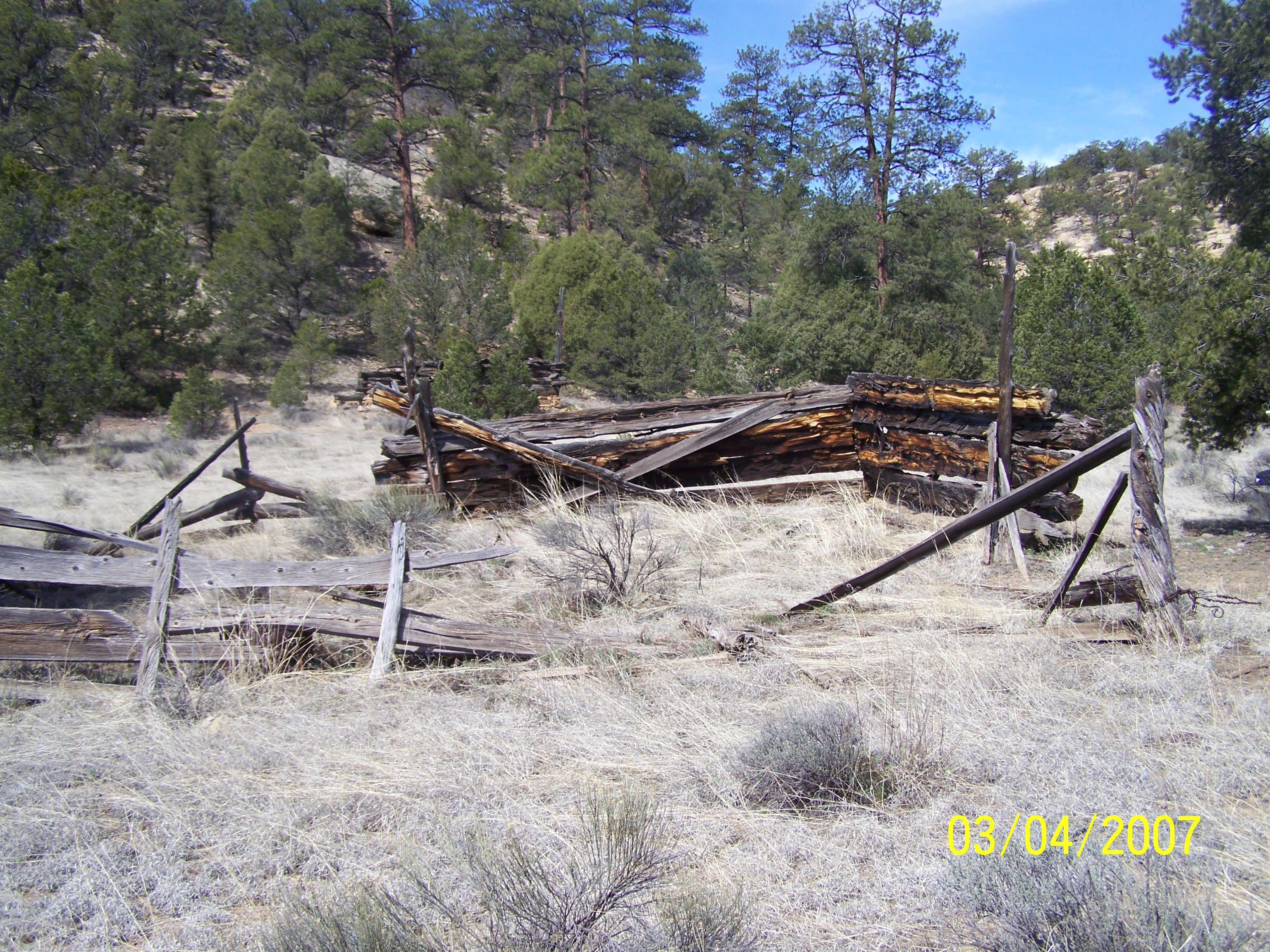

Feature 20: The Horse Corral

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
  20 20-1   upright post East
  20 20-2   upright post East
  20 20-3   upright post East
  20 20-4   upright post East
  20 20-5   horizontal wall element North
  20 20-6   horizontal wall element North
  20 20-7   horizontal wall element North
  20 20-8   horizontal wall element North
  20 20-9   horizontal wall element West
  20 20-10   horizontal wall element West
  20 20-11   horizontal wall element West
  20 20-12   horizontal wall element West
  20 20-13   horizontal wall element West

Feature 23: The Symbolic Fence



 Description

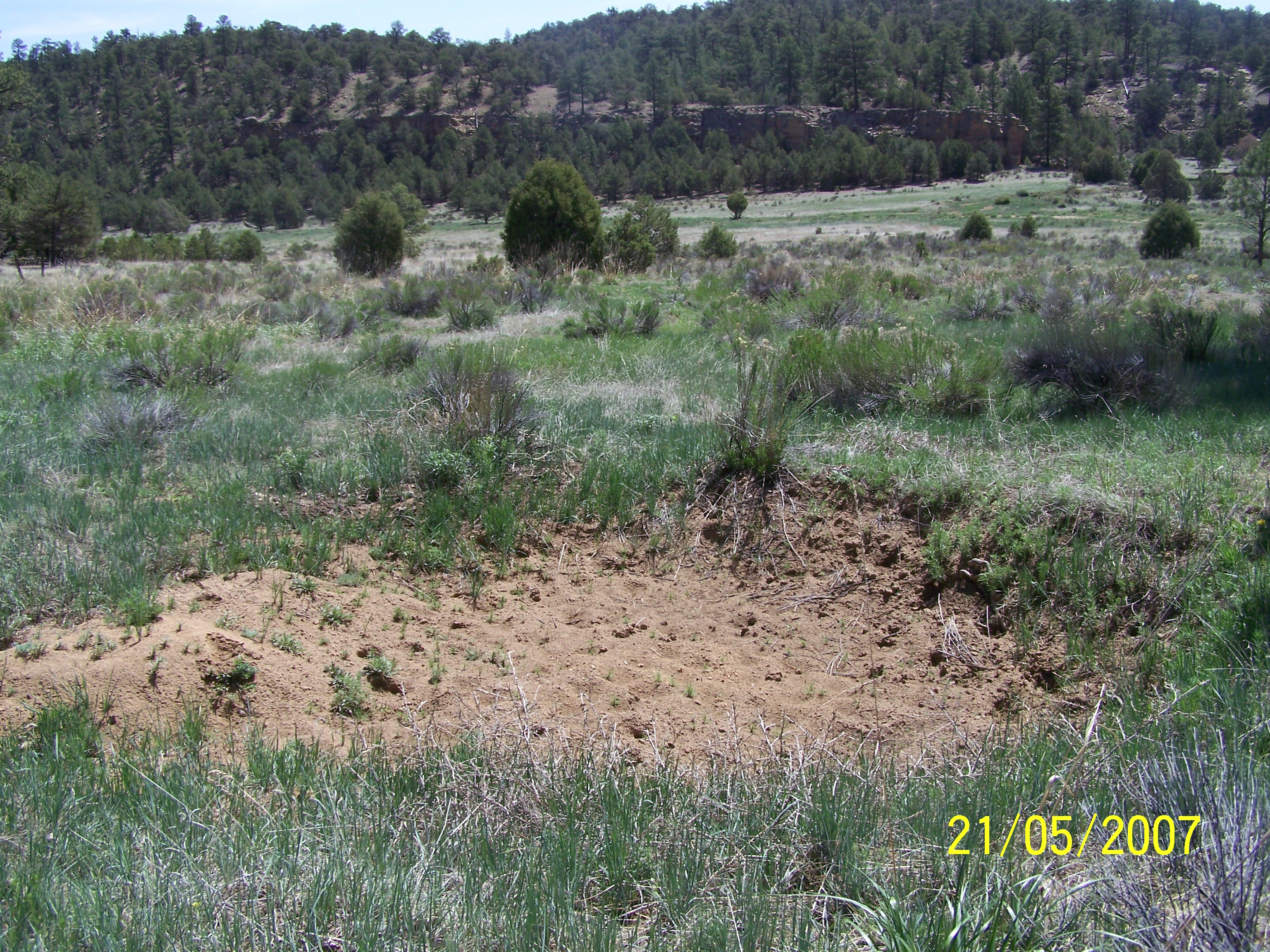

Feature 24: A Possible Well

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment

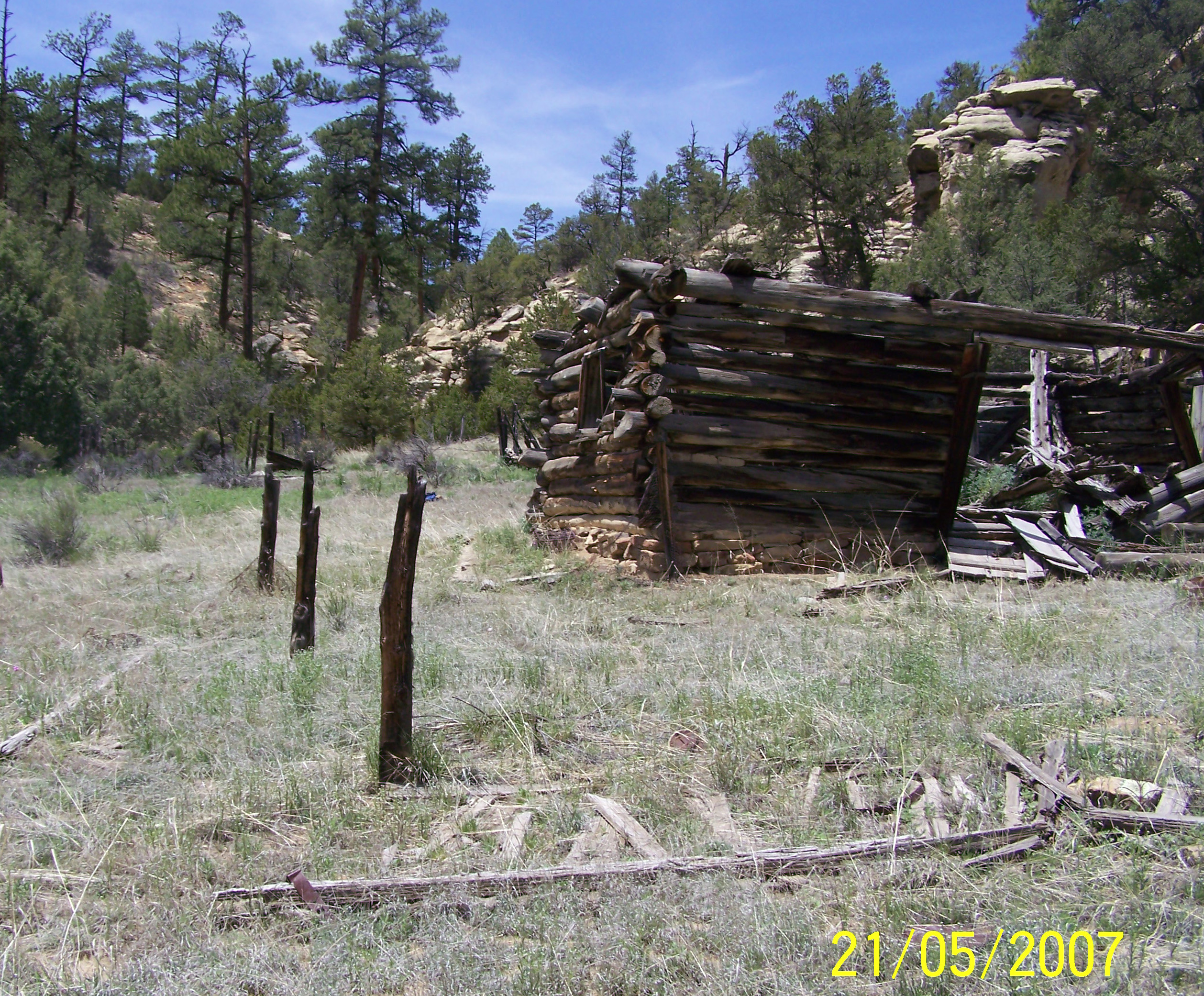

Feature 25: The Picket Fence

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment

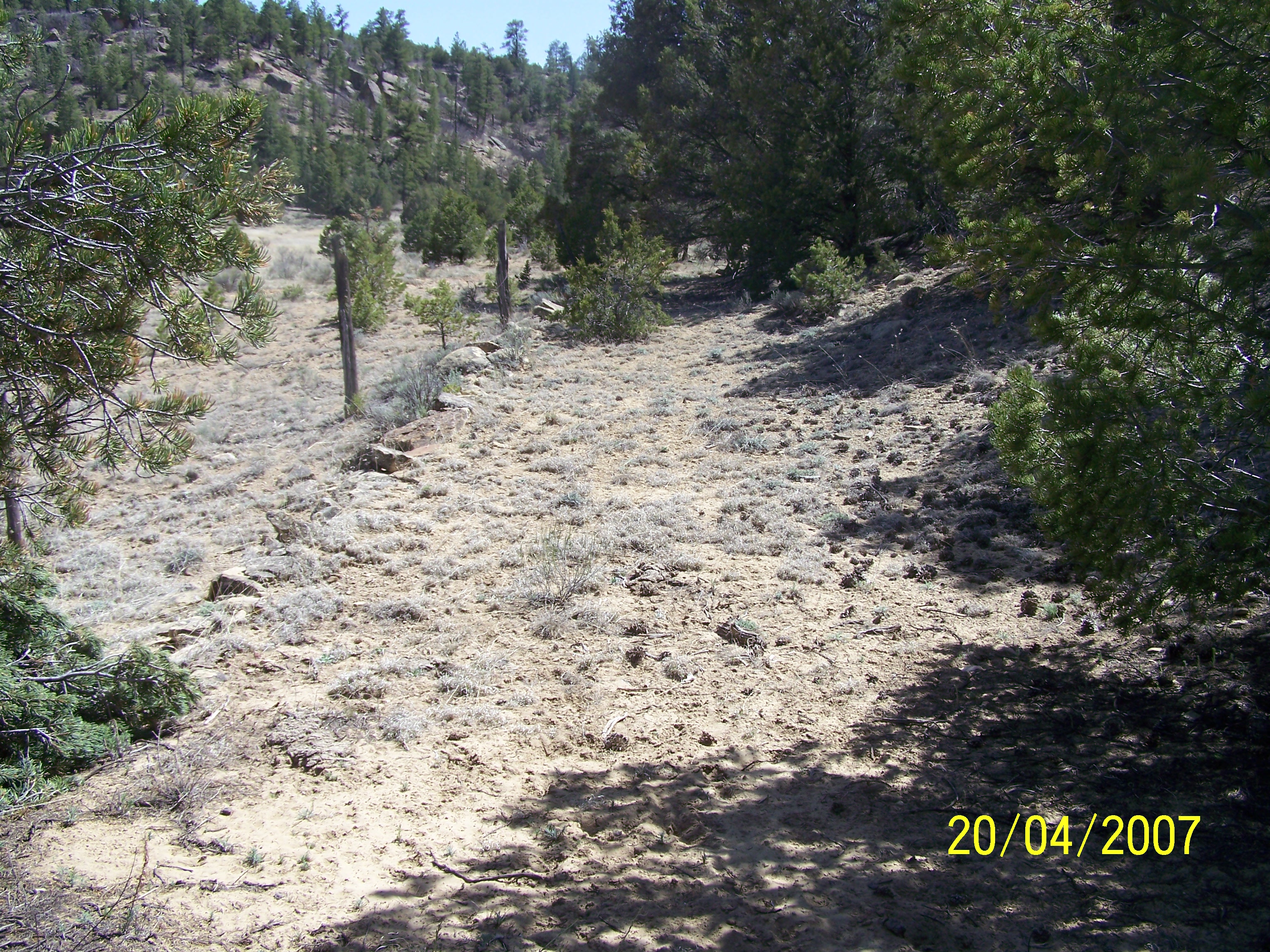

Feature 26: The Arroyo Road

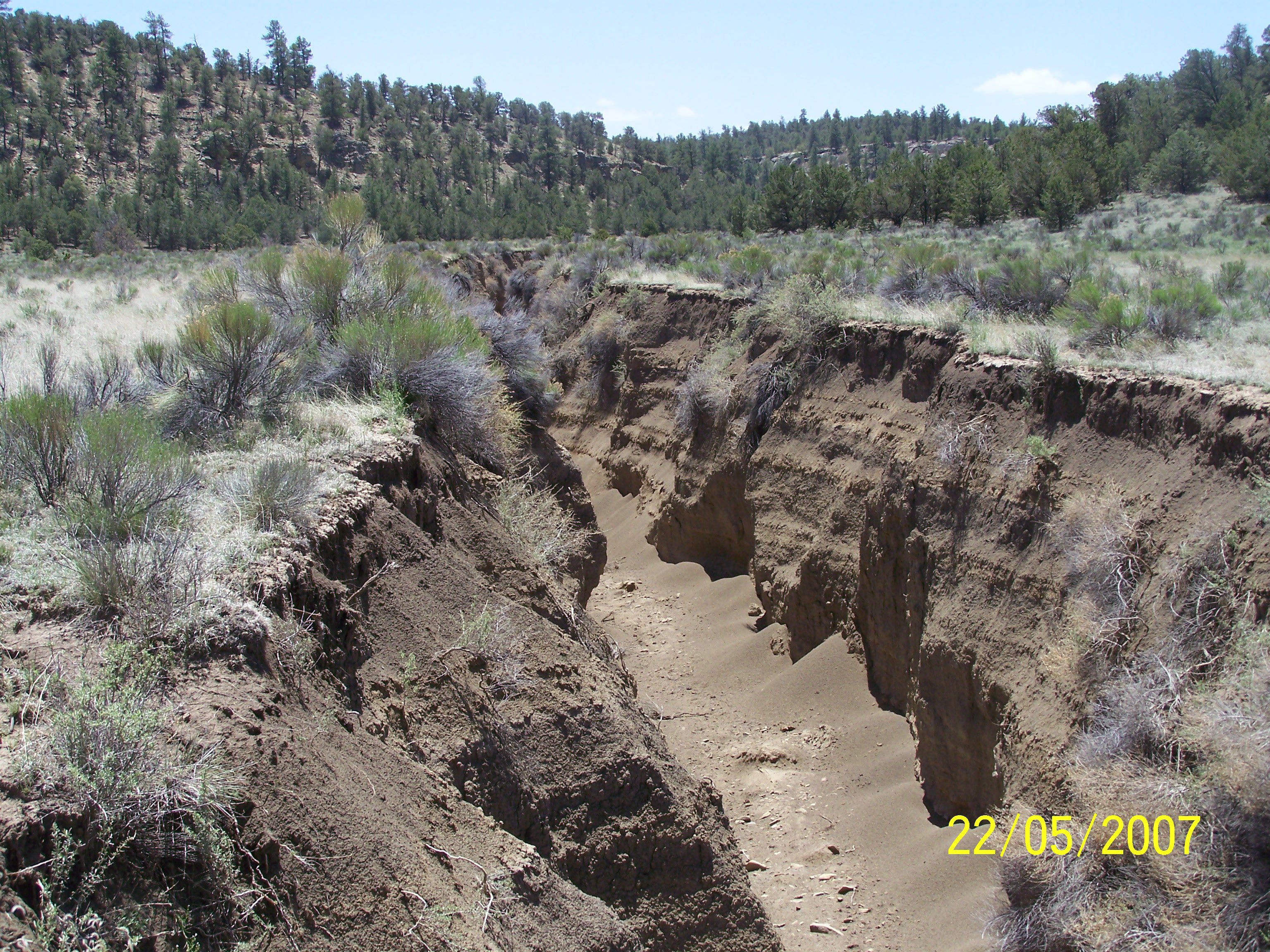

The deep arroyo formed by use of the Feature 26 road

Description

LTRR Number Feature Number Field Number SP Provenience Wall Segment Inside Date Outside Date Comment
